The coating section is designed for uniform application of film or sugar coatings on tablets, pellets, or other solid dosage forms. It ensures efficient mixing, tumbling, and spraying for consistent coverage, smooth finish, and controlled coating thickness. The process involves precise spray systems, regulated airflow, and temperature control to achieve high-quality results while minimizing coating material wastage. Suitable for pharmaceutical, nutraceutical, food, and confectionery industries, the system is built to meet CGMP standards, with easy-to-clean surfaces and robust stainless steel construction.
Coating Section
COATING SECTION

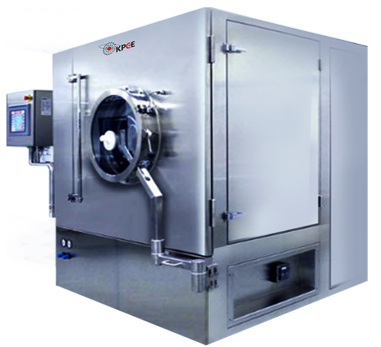

TABLET AUTO COATING MACHINE
- Type: Film / Aqueous / Solvent / Enteric
- Industry: Pharma, Chemical, Cosmetics, and Food Industries
- Capacity: 1 kg to 500 kg/hr (depends upon requirement)
- Sizes: 6” to 72”
- Coating Pan: SS316L construction with 3 mm hole / 5 mm pitch
- Models: CGMP / Non-CGMP
- MOC: Contact parts – SS316; Non-contact parts – SS304
- AHU: Puff insulated with pre, micro, and HEPA section
- Heating Media: Steam or Electrical
- Spray Guns: Standard make like Spraying Systems, Spraytech, Walther Pilot, etc.
- Baffles: Easily removable type for cleaning
- Air Distribution: Through plenums either from top or bottom
- Spray Arm Movement: Pneumatic
- In-built: WIP / CIP system
- Controls: PLC / SCADA system
- Scrubber: Dry or Wet as required
- Additional Features: Magnetic gauge or DP transmitters across HEPA and pan, mimic operation in HMI
“Sift with precision. Deliver with confidence.”
— Vibro Sifter solutions engineered for performance, reliability, and compliance.

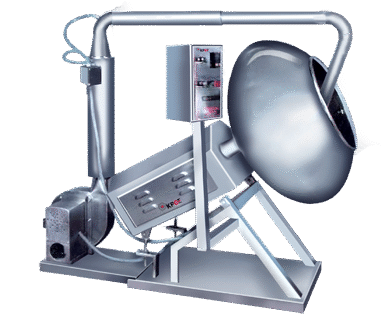

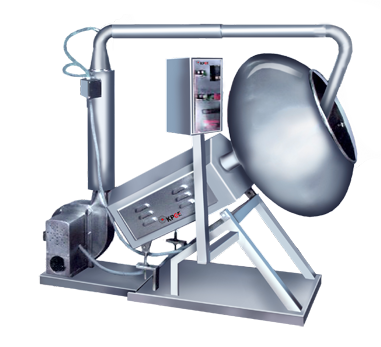

CONVENTIONAL COATING PAN
Conventional coating pan with very sturdy SS structure. The Coating pan drive is through standerd make heavy duty worm reduction gear box & electrical motor by means of belt & pulley drive fitted on rigid structure. Pan speed can be changed through variable speed pulley mounted on the shaft of electric motor. (AC variable frequency drive – optional with extra cost). Coating pan made of SS 304 / SS316 or SS316 material and mirror finish polished from inside & outside.
Baffles either welded or detachable (welded are the standard supply if not specified) provided inside the pan considering production requirements.
Easy mounting considering changeover of coating / polishing pan. Separate hot air blower system is provided easy operation. Digital temperature controller provided with necessary temperature control device with interlocking for heater function. Flame proof electrical can be provided with extra cost.
“Sift with precision. Deliver with confidence.”
— Vibro Sifter solutions engineered for performance, reliability, and compliance.
ENHANCED PRODUCT QUALITY
Ensures consistent, uniform production with precise control over formulation, mixing, and processing.
INCREASED EFFICIENCY & PRODUCTIVITY
Speeds up production cycles with automated and optimized processes.
REGULATORY COMPLIANCE
Designed to meet strict pharmaceutical and cosmetic industry standards (GMP, FDA, WHO guidelines).
