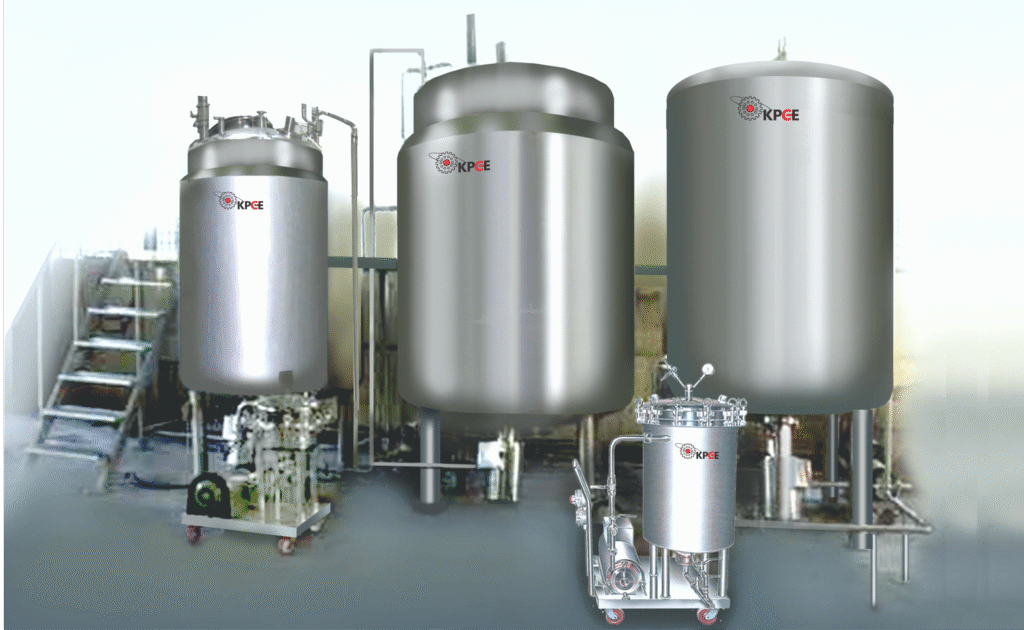

Hygienic manufacturing of liquid syrups in range from 50 Ltrs to 20,000 Ltrs. minimum manual handling of liquids means maintenance of hygienic process, Quality components in the plant including Sugar melting vessel, Transfer pumps, Inline homogenizer and we also provides in them optimum performance support Pants recognized for delivering outstanding performance support as well as higher production capacity Making a cGMP stand./contact parts made of SS316 metal User friendly design makes it easy to assemble and clean. Direct transfer of sugar from stores to sugar syrup vessel. Entry of propeller agitations provided from bottom using specially designed mechanical seal face.

“Sift with precision. Deliver with confidence.”
— Vibro Sifter solutions engineered for performance, reliability, and compliance.

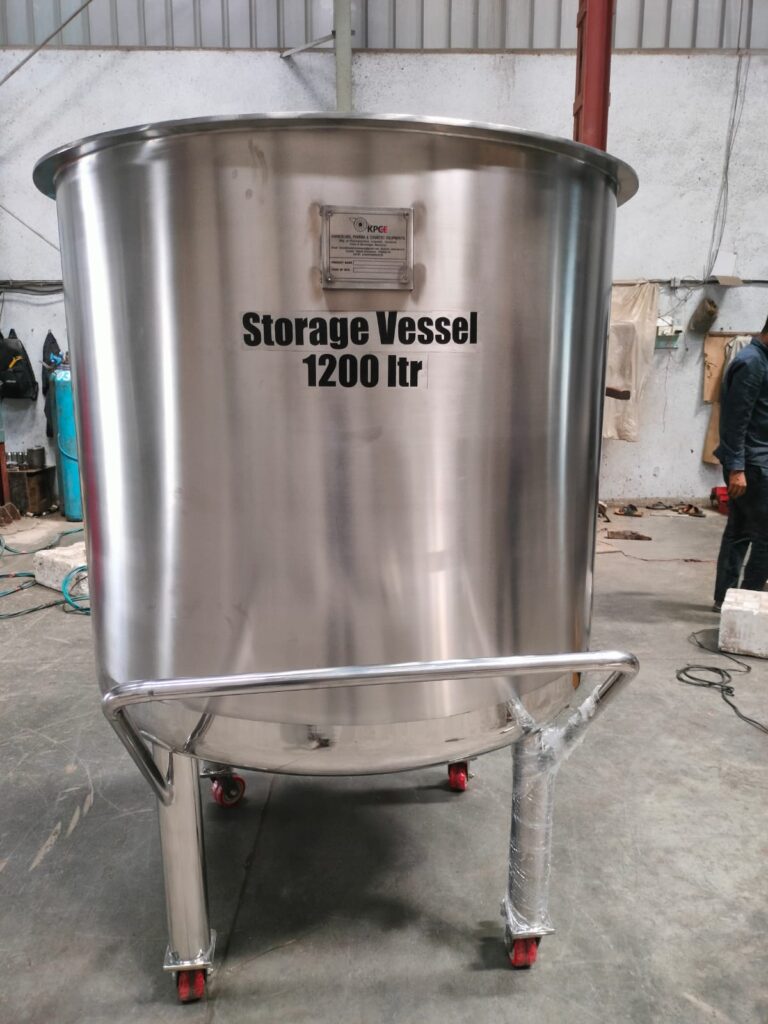

Storage Tanks and Jacketed Vessels are used to manufacture or store high quality liquids and solutions required by different industries like Pharmaceuticals, Chemical and Cosmetics etc. It can be provided either jacketed or non-jacketed versions. It can be also available in electric and steam heated versions. The storage tanks and jacketed vessels can be designed in different rage like, 100, LTR TO 25000 ltrs in any shape and size as per client’s requirements.

“Sift with precision. Deliver with confidence.”
— Vibro Sifter solutions engineered for performance, reliability, and compliance.

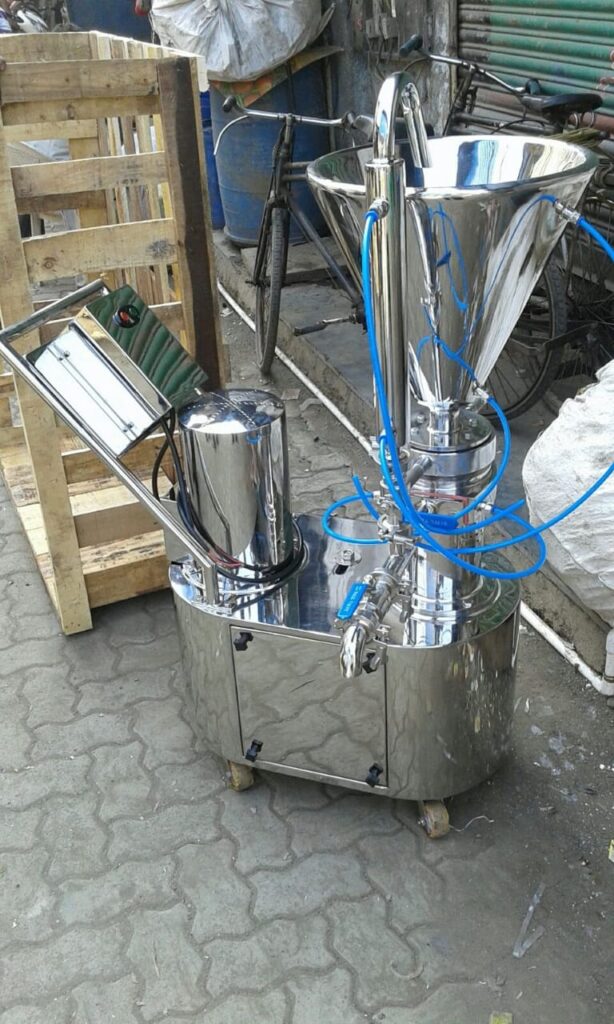

A machine that is used to reduce the particle size of a solid in suspension in a liquid, or to reduce the droplet size of a liquid suspended in another liquid. Colloid mills work on the rotor-stator principle: a rotor turns at high speeds (2000-18000 RPM) The resulting high levels of hydraulic shear applied to the process liquid disrupt structures in the fluid. Colloid mills are frequently used to increase the stability of suspensions and emulsions., but can also be used to reduce the particle size of solids in suspensions. Higher shear rates lead to smaller droplets, down to approximately which are more resistant to emulsion separation.

“Sift with precision. Deliver with confidence.”
— Vibro Sifter solutions engineered for performance, reliability, and compliance.

Loader automatically loads empty capsule in the loading plate for manually operated capsule filling machine, hence it take normally 5 minutes to load empty capsule in 300 holes.

“Sift with precision. Deliver with confidence.”
— Vibro Sifter solutions engineered for performance, reliability, and compliance.

Zero hold up Filter press: Model: cGMP.
Filter press having exactly the opposite direction of flow of liquid to the flow in standard filter. The unfiltered liquid is fed into central part of the machine giving high pressure from bottom inlet. The filter media filters the liquid when the whole liquid spreads out equally on each plate. Solids remain on filter media and filtrate liquid collects in the shell, which then comes out through the outlet. After the completing of filtration process the cake is cleaned from filter material and can be recycled.

Sparkler filter press: Model: cGMP.
The main operation of is to filter the impure liquid arriving on top of each horizontal plate with increasing pressure, the filter media holds back the impurities & allows the filter to pass through center by interlocking cups, which takes the filtrate to the outlet of the filter. The cake formed between the horizontal plates can also be obtained. The function of filtration process becomes slow when the liquid reached its holding capacity into the cake

“Sift with precision. Deliver with confidence.”
— Vibro Sifter solutions engineered for performance, reliability, and compliance.

The high pressure homogenizer HPH is an inline dispersing machine for energy-efficient, continuous production of superfine emulsions. The dispersing action of the high pressure homogenizer HPH is not based on the rotor/stator principle. spontaneous decompression of the liquid from max. 2000 bar to an ambient pressure. The homogenizers is recommended when a disintegration down to the nano range is required; however, these machines do achieve a smaller flow capacity than conventional dispersers. The machine’s design to fit customer-specific tasks. The high pressure homogenizer is available in two sizes with either one or more piston(s) of varying diameters. These parameters determine the max. homogenizing pressure (800 or 2000 bar), Feeding volume (up to 10 ml) as well as homogenizing results and flow capacities.

“Sift with precision. Deliver with confidence.”
— Vibro Sifter solutions engineered for performance, reliability, and compliance.

The machine is designed to seal aluminum caps for various sizes of bottles fed on a continuous line. Change parts are available for different size of caps and bottle diameters. The machine is fully automatic & its operation is very simple. The bottles are fed by means of a SS Slat conveyor to the pickup point of the cap-vibrater chute a cap is picked up by the bottle and the star wheel carries the bottle under the sealing head. The complete head assembly moves down and perfect closer is achieved by the threading and skirting rollers. The movement of the bottles is arranged from left to right on the conveyor.

Model: cGMP. Main drive motor 1.5 HP 415 Volt.
Bottle size tolerance required for the machine & ± / 0.5 mm. for bottle dia & height. The output cap of machine is 40 to 60 bottles/min. with ‘V’ Belt pulley drive arrangement.
